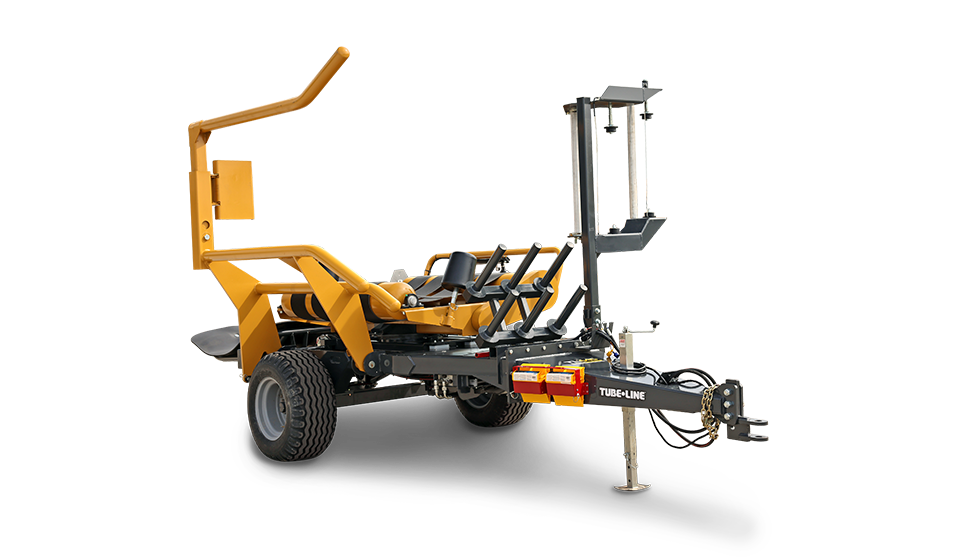

T L 645 Individual Balewrapper Header Image
Print

Tubeline’s TL645 is a high-performance, self-loading bale wrapper built for maximum productivity without compromising bale quality. An intuitive colour LCD display and tactile keypad give operators easy control of machine functions, wrap counts, and system status. Proven twin-wrap technology and an automatic wrapping cycle deliver more bales per hour with tight, consistent seals for quality baleage. An automatic cut-and-hold system, film-break sensor, and onboard six-roll film storage help minimize downtime and keep you moving efficiently from field to field.

LCD Display Feature Image

In-Cab Full Function Control

A series of onscreen prompts allow operators to quickly setup the wrapper. It’s colourful display help to emphasize operations. An intuitive button layout makes easy work of manual operation.

Hydraulic Side or End Tip Feature Image

Hydraulic Side or End Tip

Versatile discharge options to ensure the bale is placed safely, depending on the terrain.

Automatic Cut & Hold System Feature Image

Automatic Cut & Hold System

Automatically slices and secures the film at the end of each cycle.

Standard Twin Wrap Feature Image

Standard Twin Wrap

The Twin Wrap Kit simultaneously pulls film from two rolls laminating them together to increase the strength of the film which aids in bending over stubborn stems.

Roll Storage Feature Image

6-Roll Film Storage

Dedicated racks to carry 6 spare rolls of plastic on the machine frame.

Other Standard Features

  • Self Loading
  • Auto Cycling
  • Easy Film Loading
  • Film Break Sensor
  • Toolless Adjustment (Bale Size)
  • Bale Guides
  • Hydraulically powered
Specifications TL645
Unit Type Trailed, Self-Loading
Bale Size (Round) Up to 5' x 6'
Max Bale Weight 3,500 lbs
Minimum Hyd. Flow 10 GPM
Hitch Type Clevis
Length 241"
Width 100"
Height 113"
Weight (LBS.) 5,214*
HP Required 60 HP
Electrical Requirements 12V DC (for In-Cab control monitor)

Errors and omissions excepted. Specifications and images on this page are subject to change without notice. For current information on all of our products, please contact Tubeline Manufacturing.
